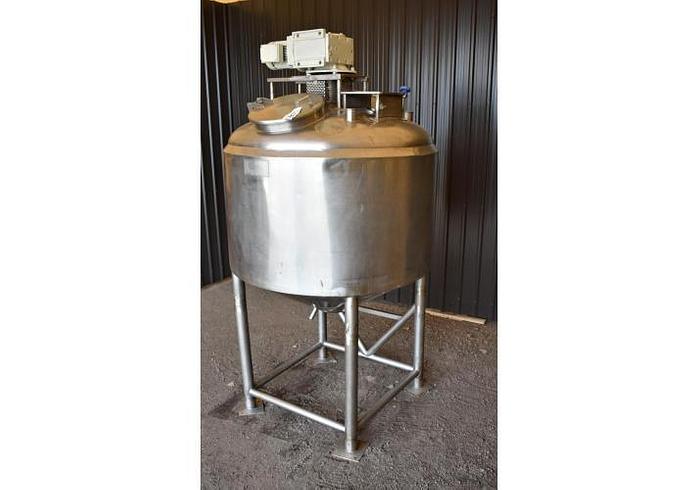

USED 500 GALLON JACKETED TANK, STAINLESS STEEL, INSULATED, WITH SCRAPE AGITATION

orCall 1-800-465-3055

Specifications

Stock Number6580

Description

-CAPACITY:  415 I.G. / 1886 L

-INTERIOR DIMENSIONS: 60'' DIAMETER X 36'' DEEP PLUS 12'' CONE BOTTOM

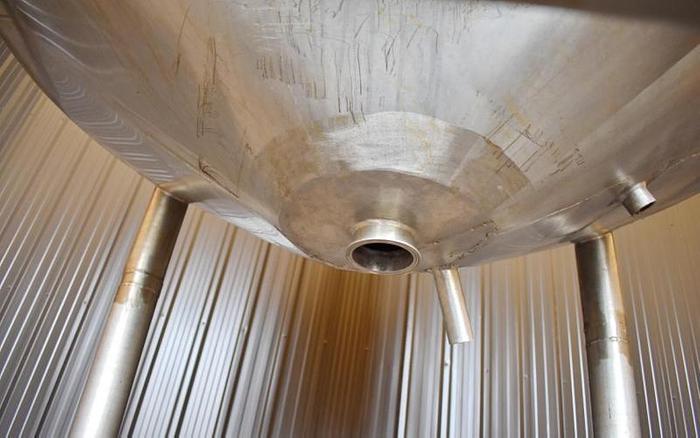

-CENTER DISCHARGE: 3'' TRI CLAMP

-TWO ZONE JACKET: BOTTOM & SIDE

-JACKET PRESSURE: 30 PSI @ 275 DEG.F

-TWO (2) TOP MANWAYS WITH LIDS: 18'' & 20''

-TOP TRI CLAMP OPENINGS: THREE 3'', ONE 2.5'', ONE 2'', ONE 1.5''

-WITH SCRAPE AGITATION

-MOTOR: 3 HP, 575 VOLT, 1730 RPM

-REDUCER RATIO: 107.37/1

-OUTPUT RPM: 16 APPROX.

-TANK HAS A STAINLESS STEEL SUPPORT TO INSTALL A SECOND MIXER

-TANK IS ON FOUR STAINLESS STEEL LEGS WITH PADS

-OVERALL HEIGHT: 9'

-PREVIOUS USE: FOOD APPLICATION
