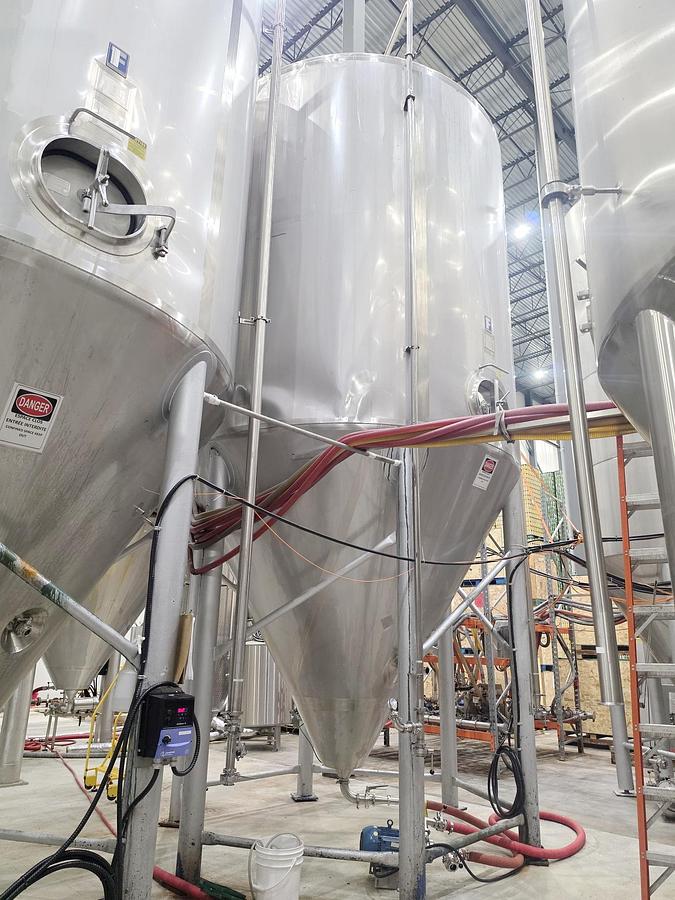

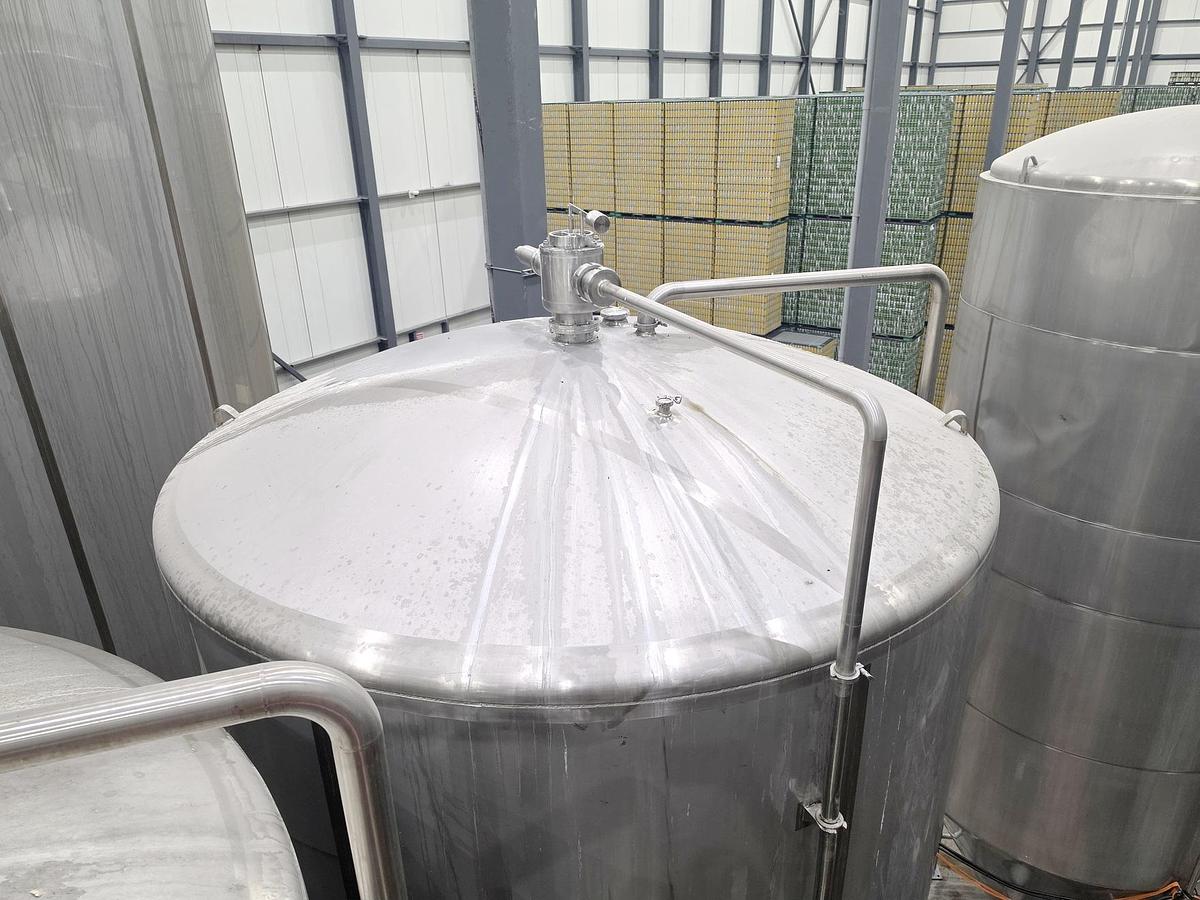

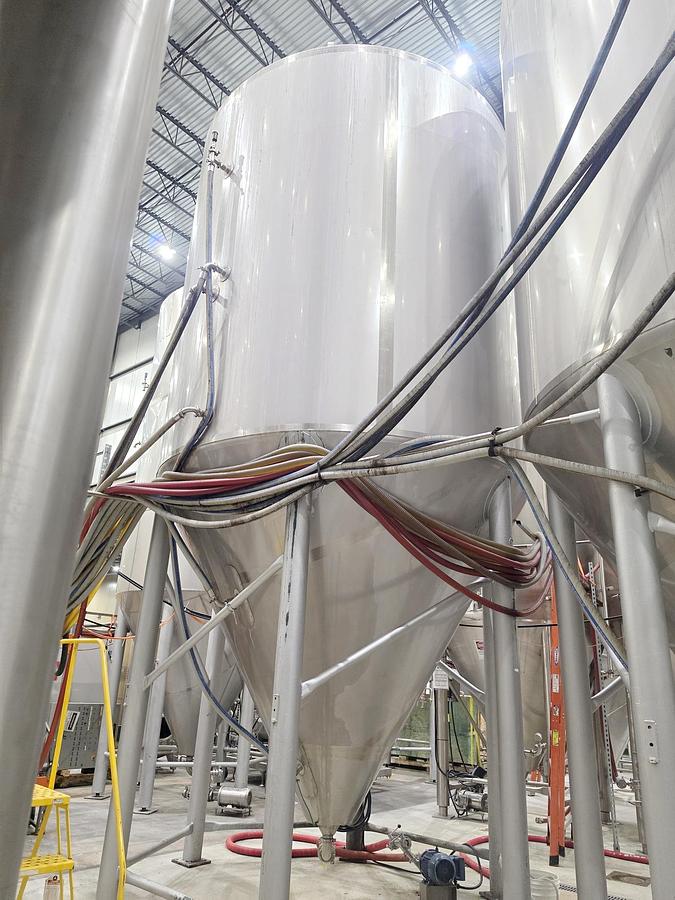

Used 10,000 Gallon Feldmeier Jacketed Tank (Reactor), 304 Stainless Steel

manufacturer: Feldmeier (USA)

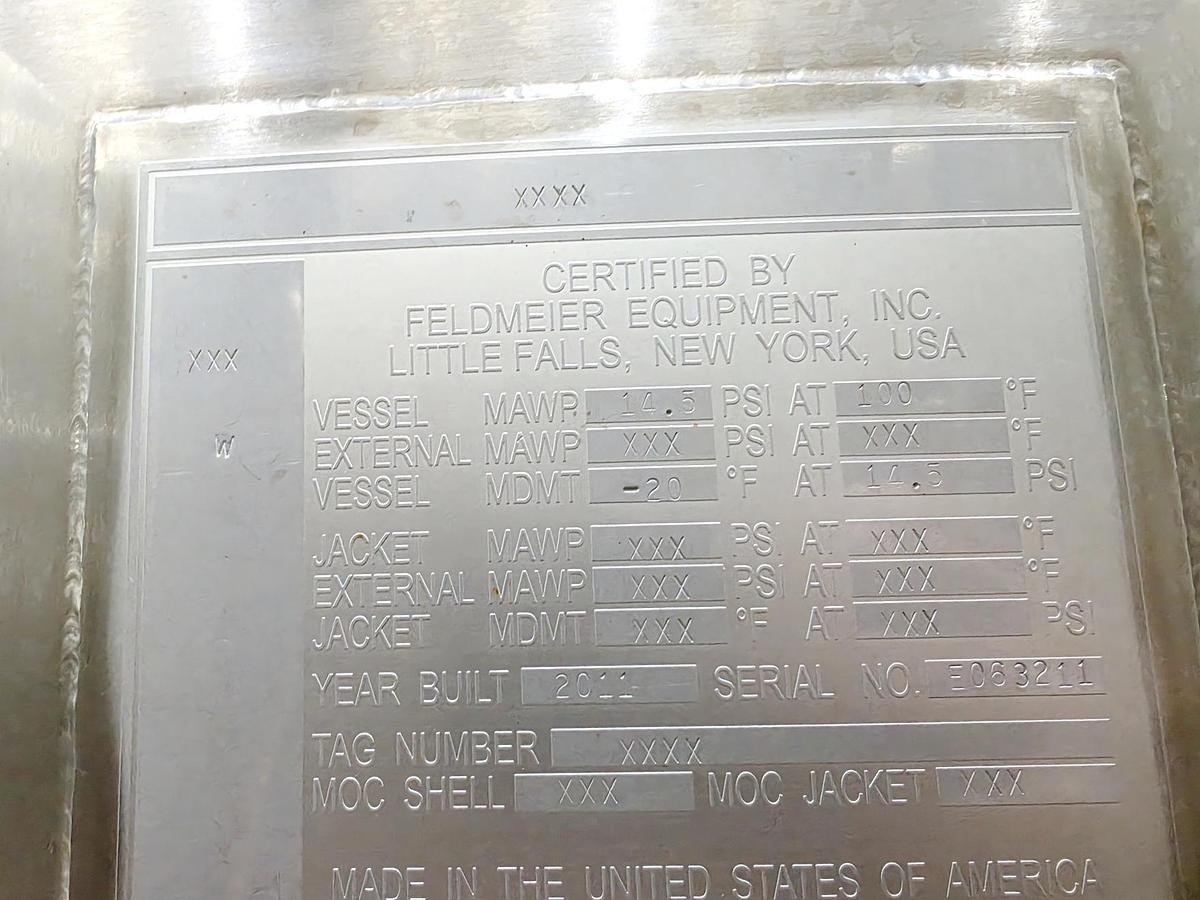

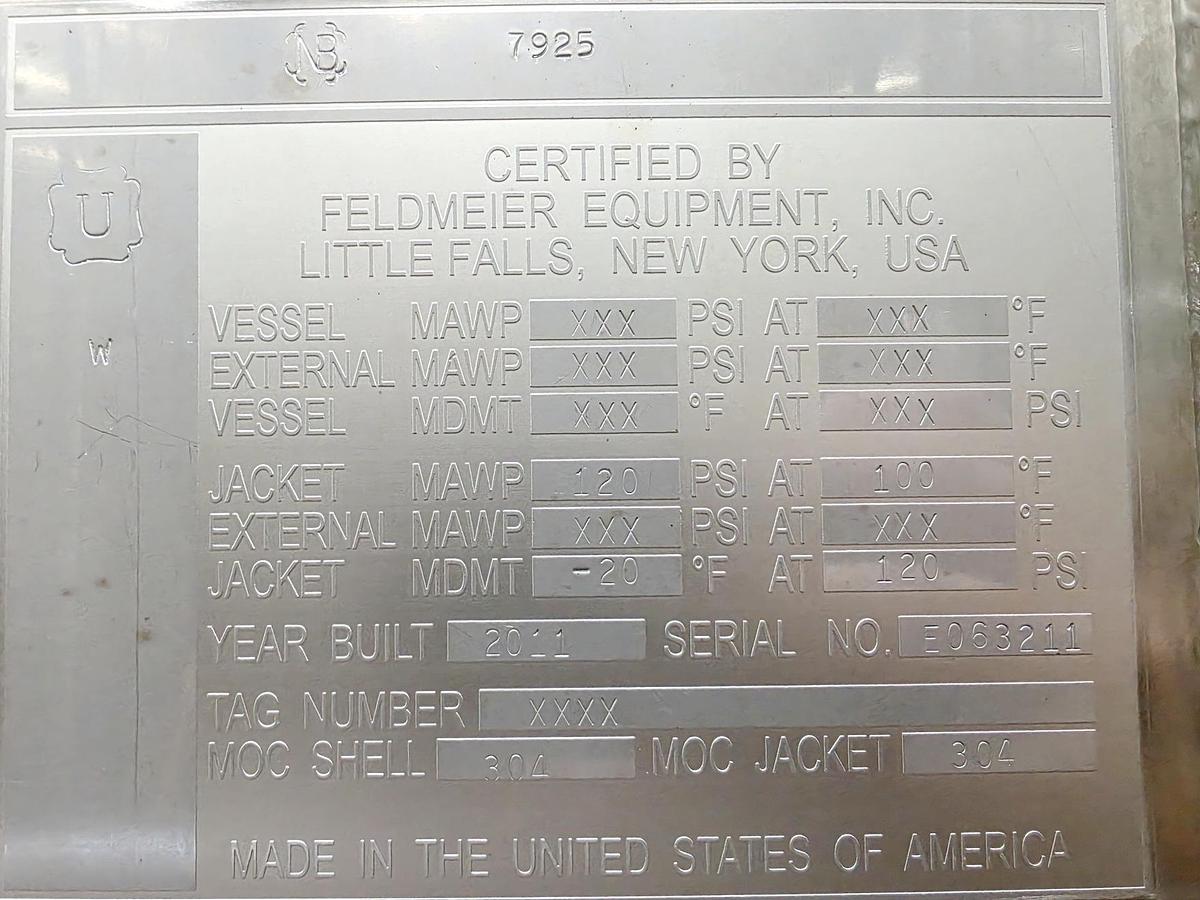

serial no. E063211

national board number no. 7925

jacketed tank for heating or cooling

jacket rated 120 psi @ 100 deg.F

internal pressure rating 14.5 psi @ 100 deg.F

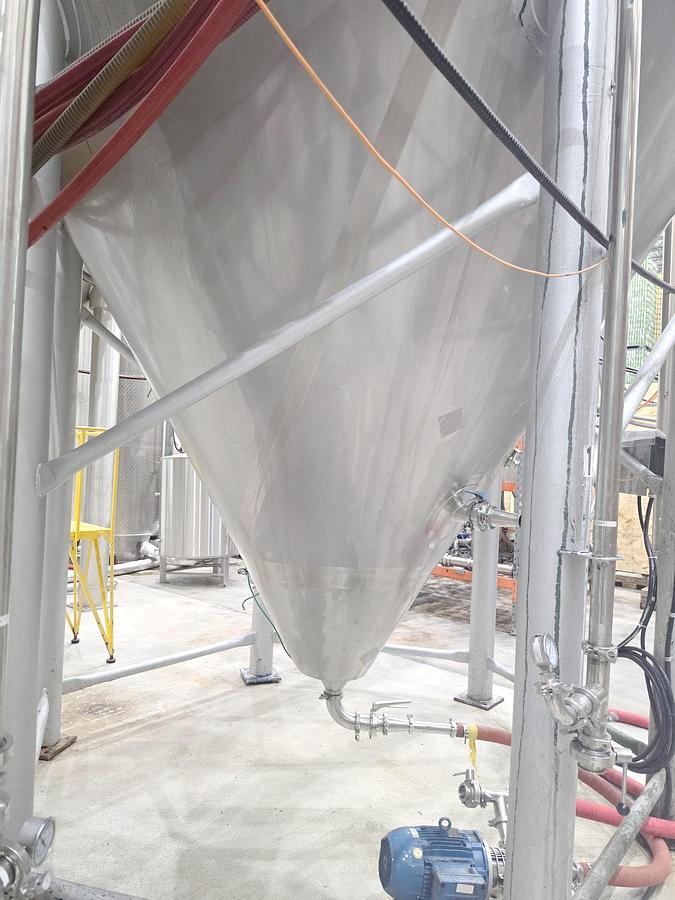

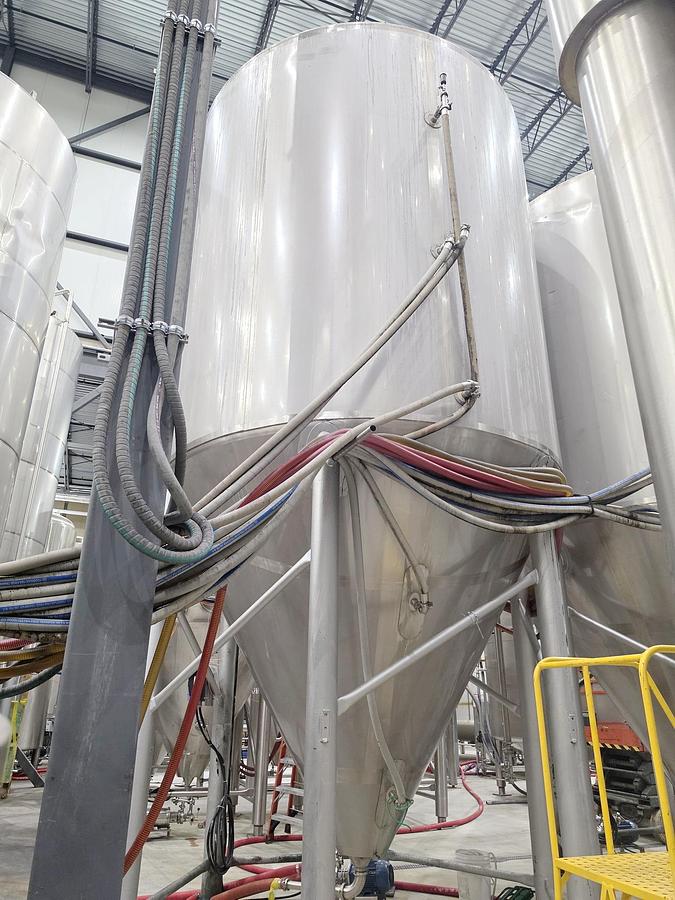

dimensions: 10'4'' diameter x 12' straight side, plus 8'7'' cone bottom

overall height:26'2''

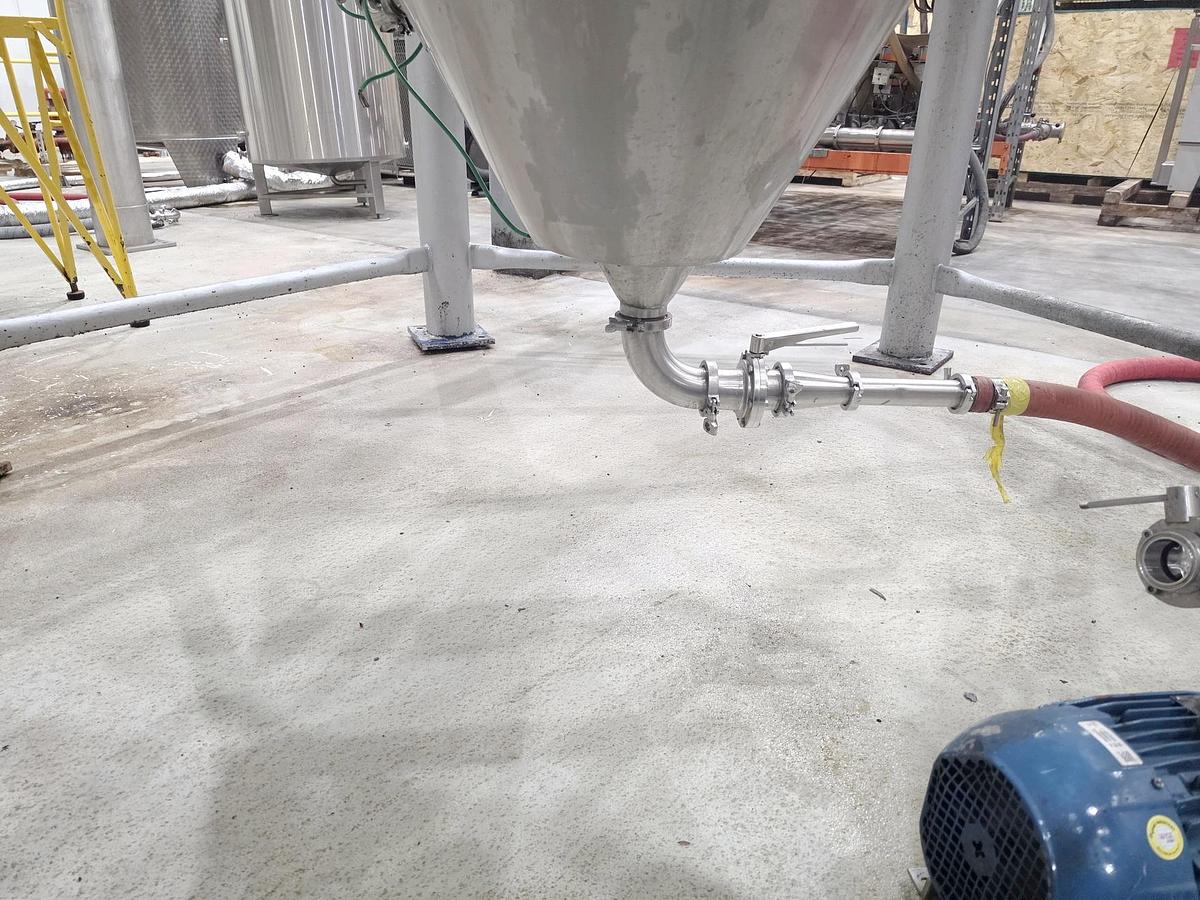

center discharge 3'' tri-clamp with butterfly valve

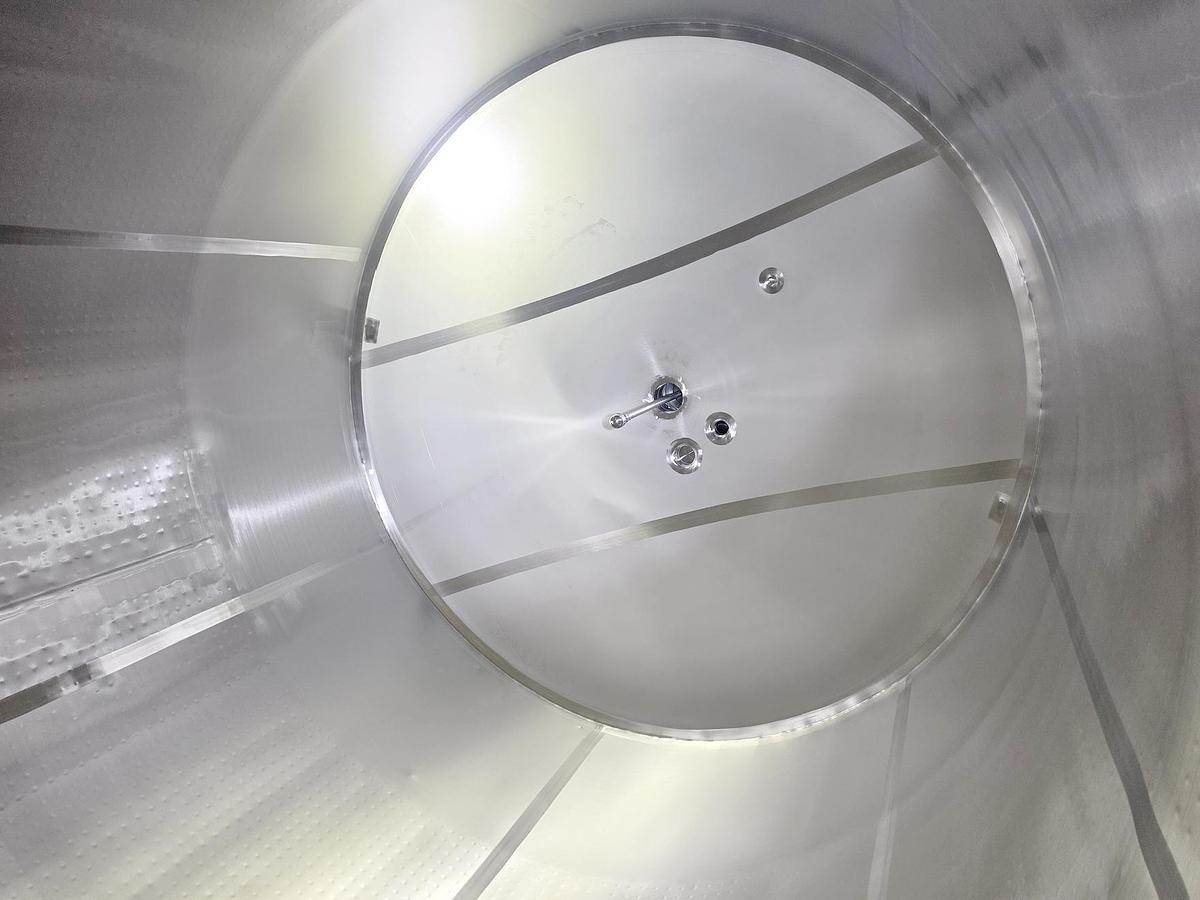

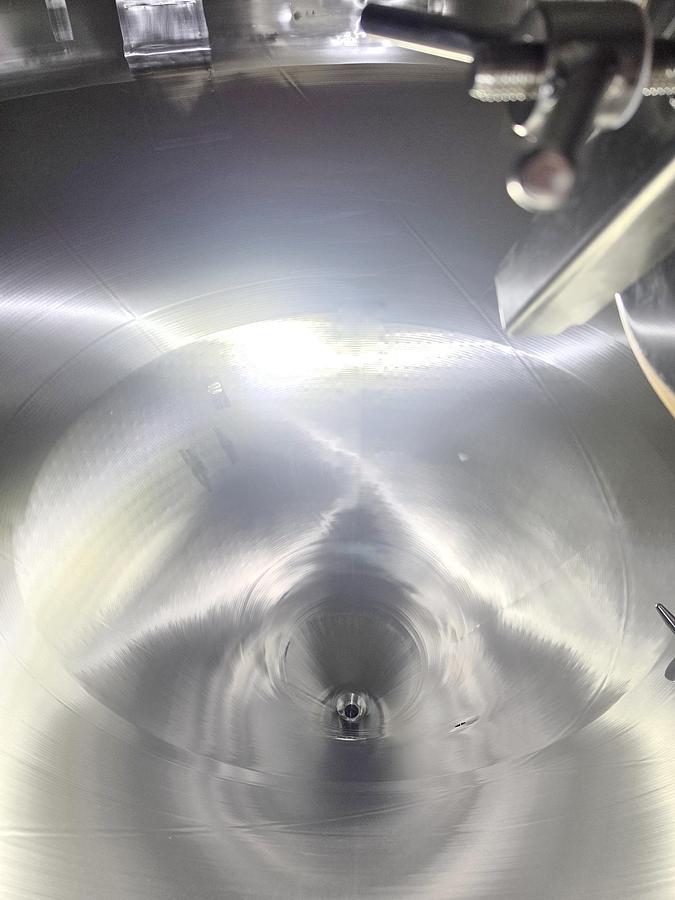

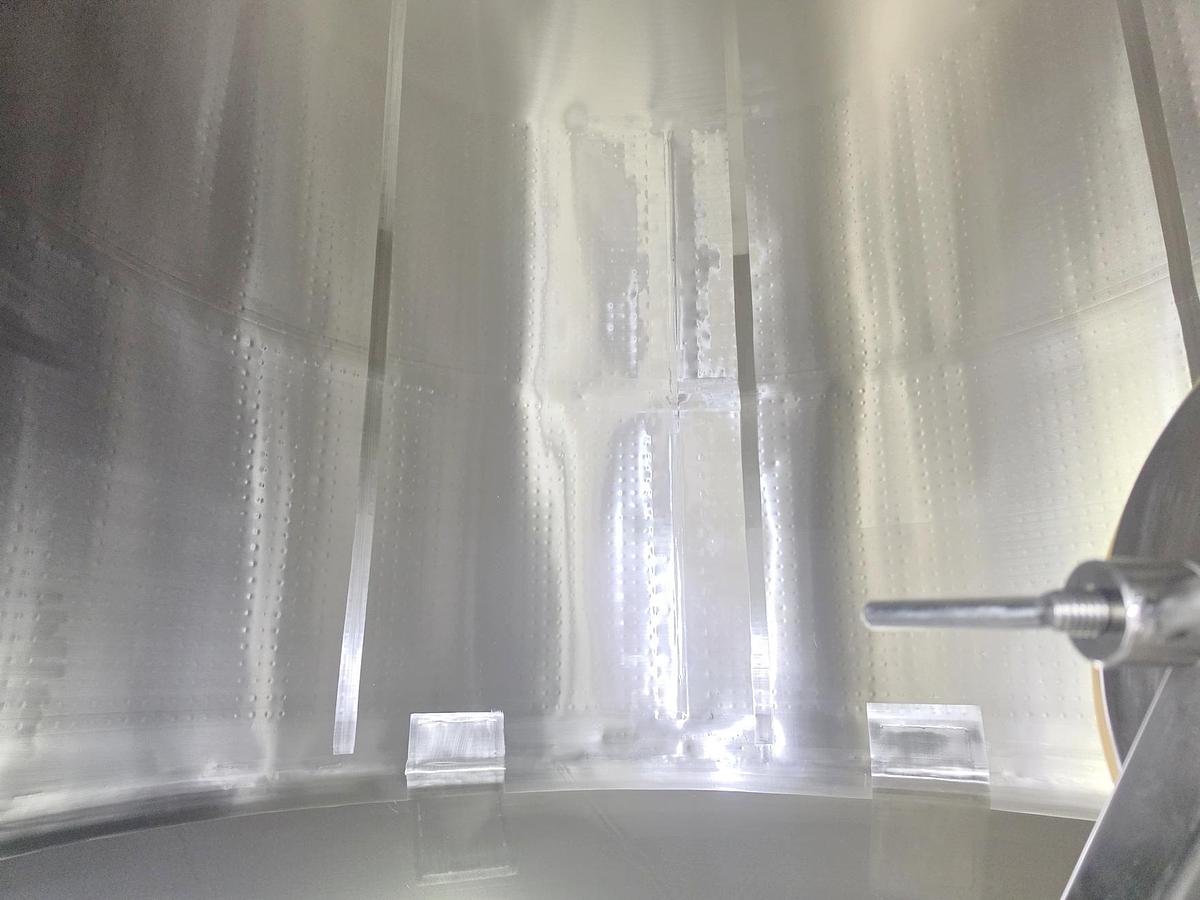

sanitary interior polish

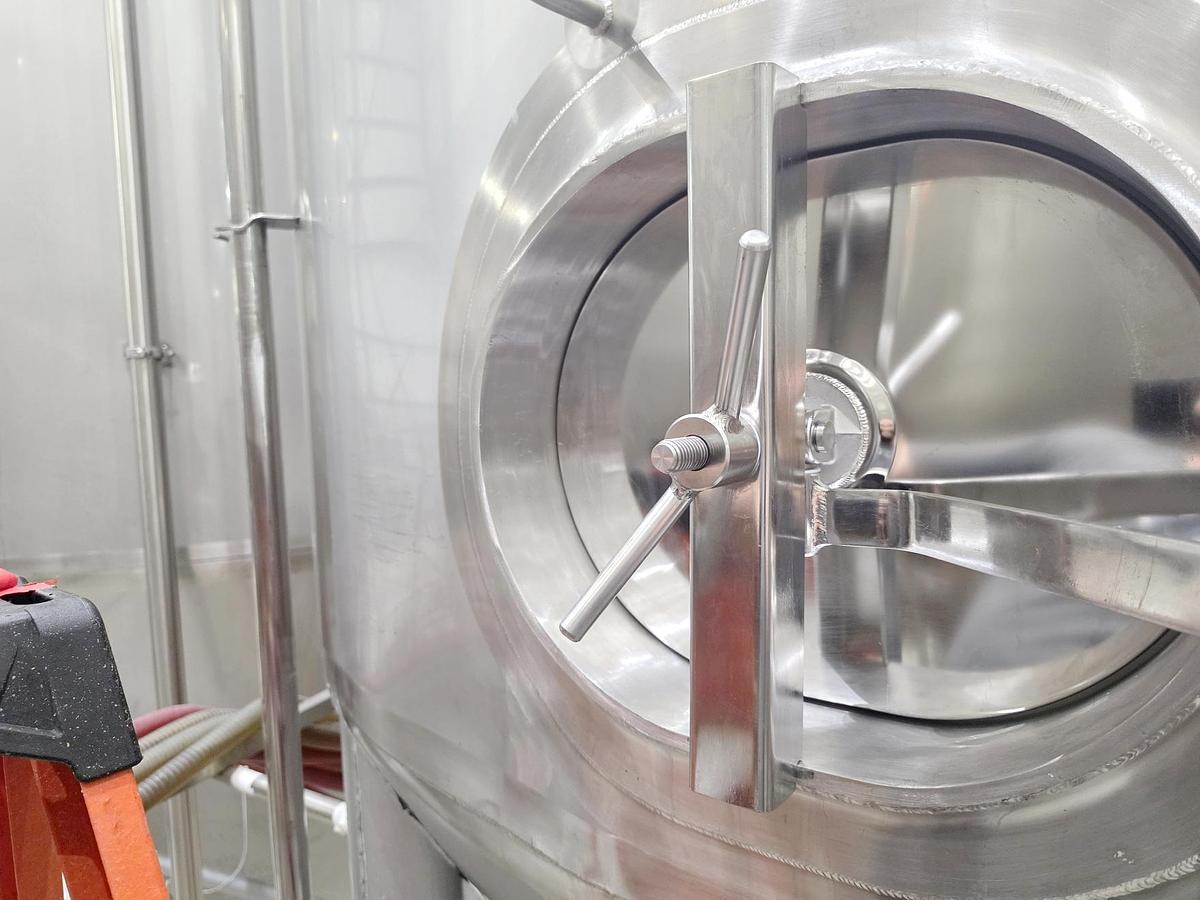

side manway with lid

with CIP spray ball

with lifting lugs

insulated

mounted on carbon steel legs

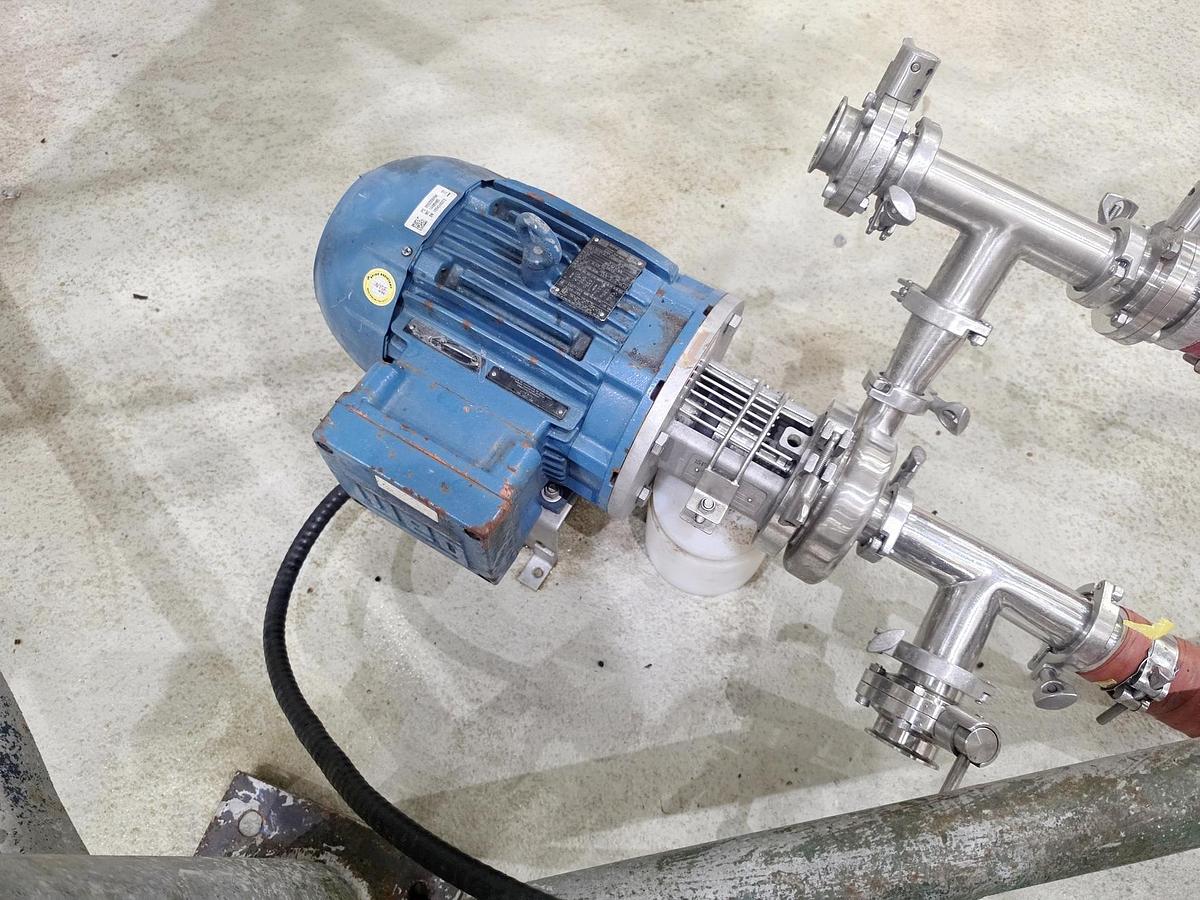

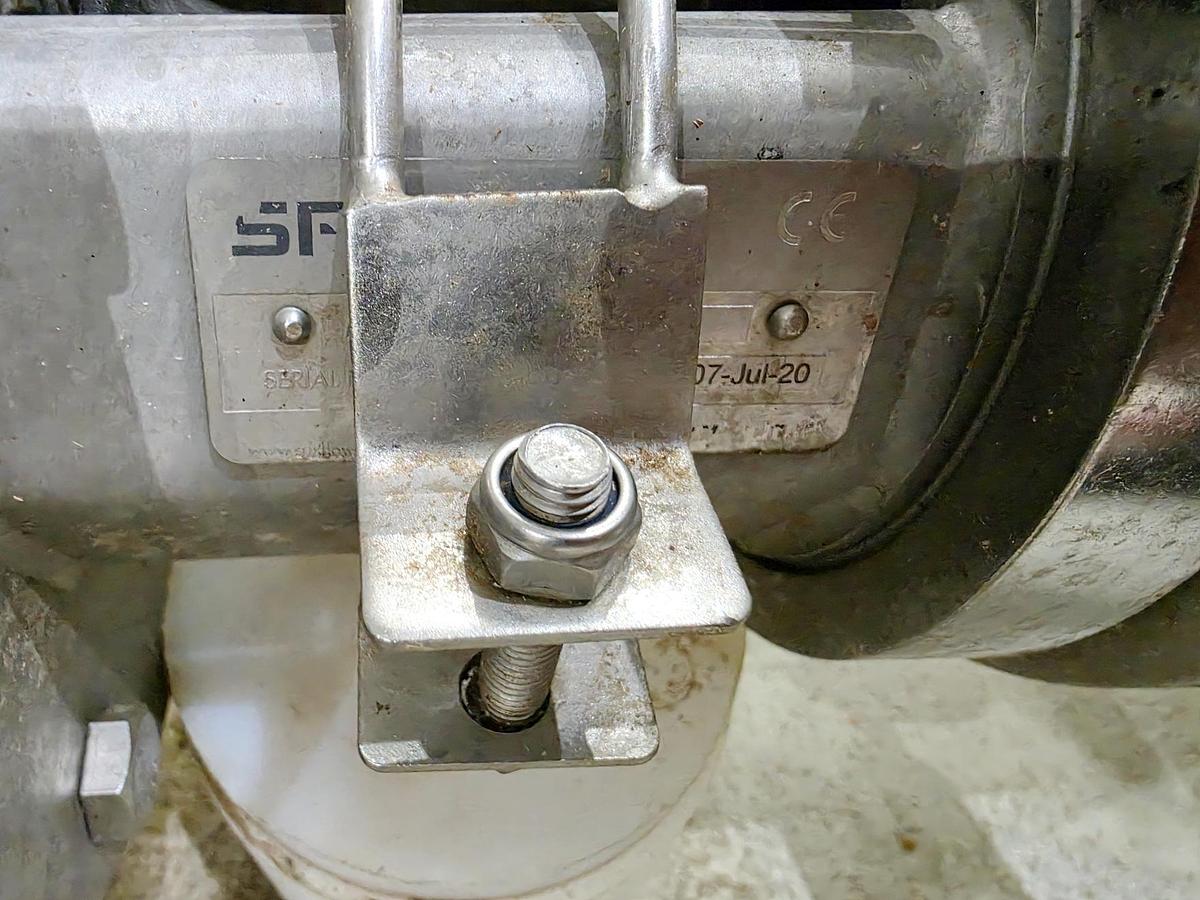

with SPX stainless steel centrifugal pump

2'' x 1.5'' inlet & outlet

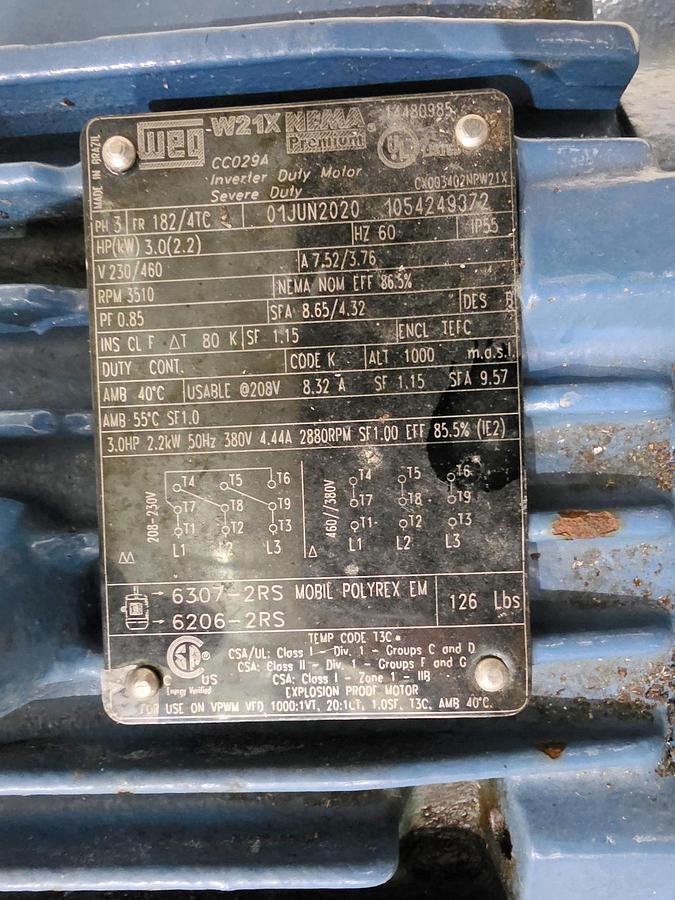

motor: 3 hp, 230/460 volt, 3510 rpm

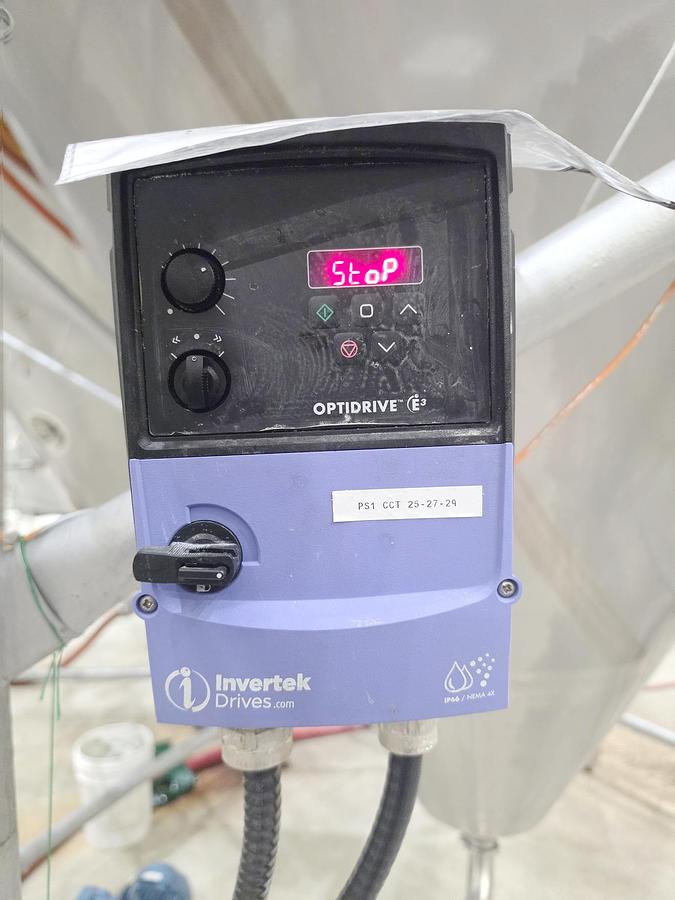

with Invertek variable frequency drive

previous use: beverage application

shipping information: 12'' wide x 26'2'' long x 12' high - 10,000 lbs

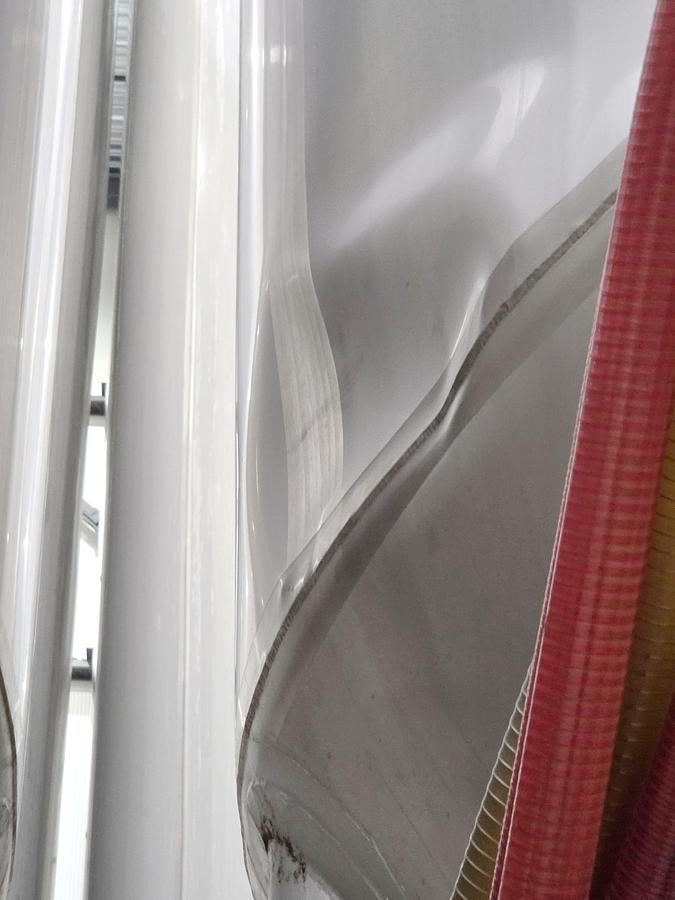

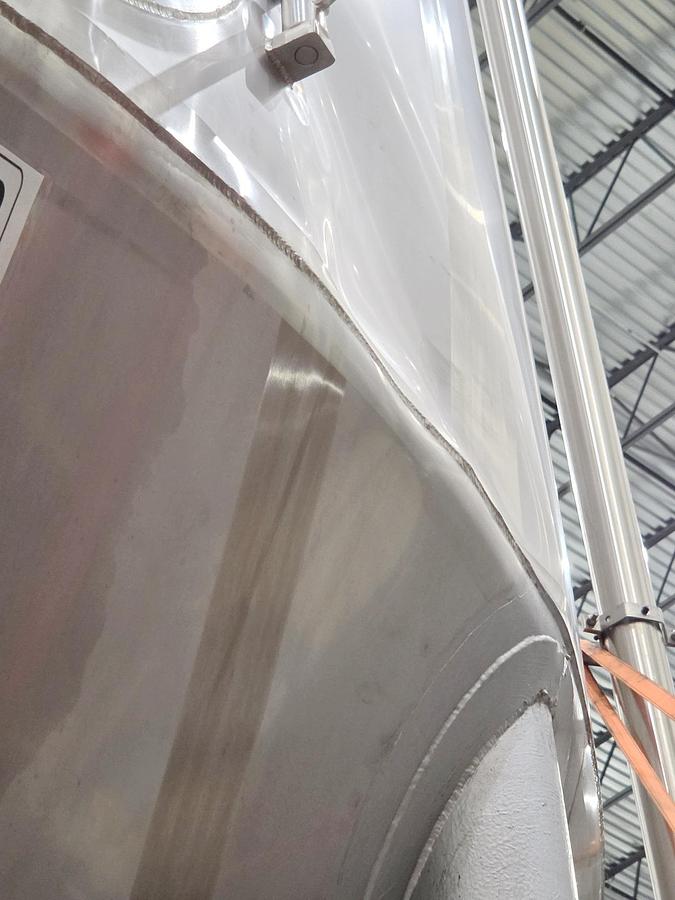

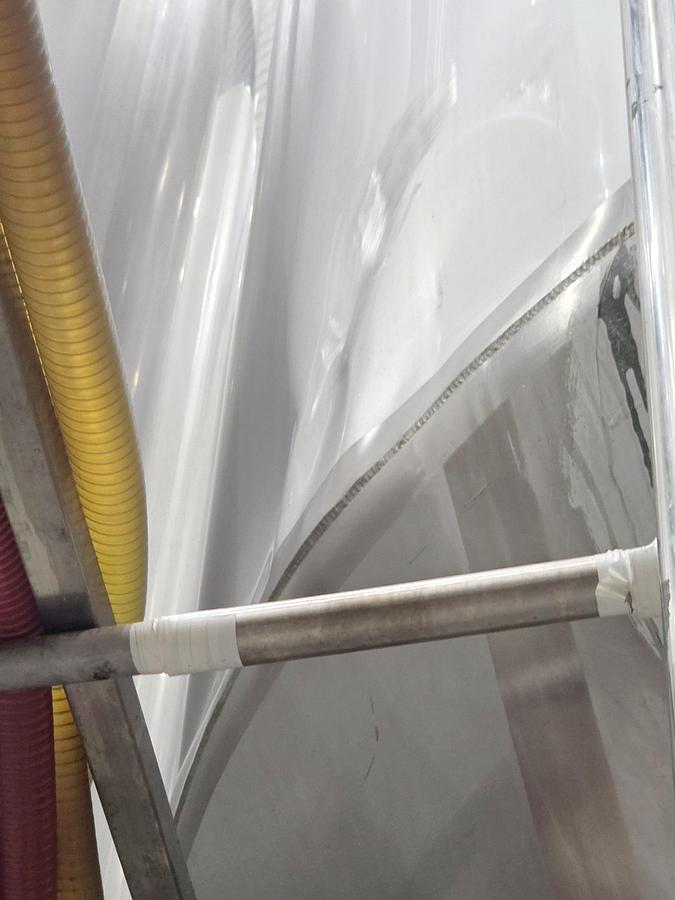

*tank exterior cladding has light exterior crinkling

Location: Terrebonne, Quebec
