Used Crown Dehulling Aspirator System
Specifications
| Stock Number | 9128 |
| Manufacturer | Crown |
| Model | 749-000 |
| Year | 2020 |
Description

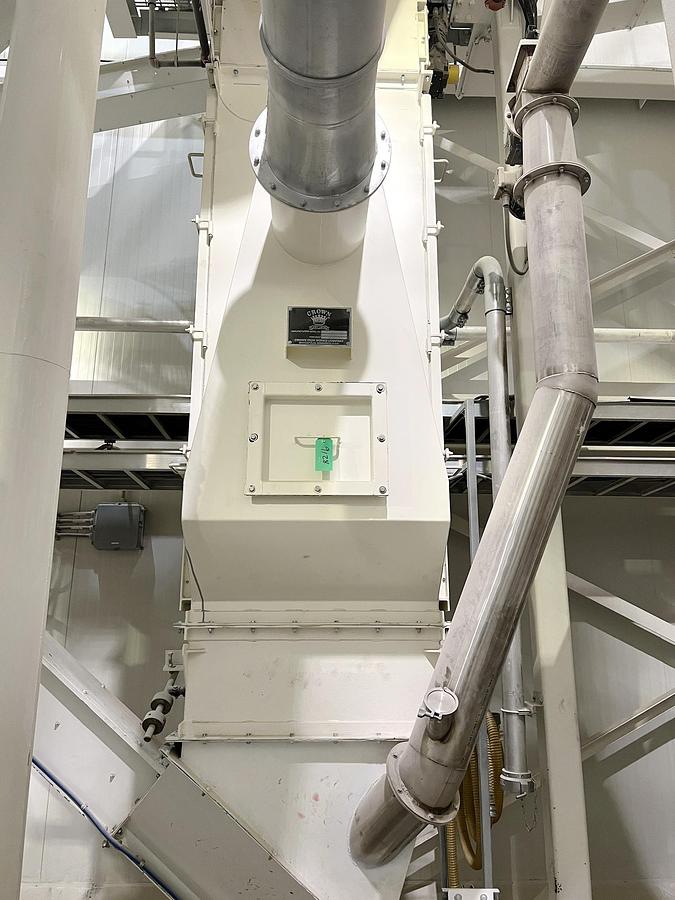

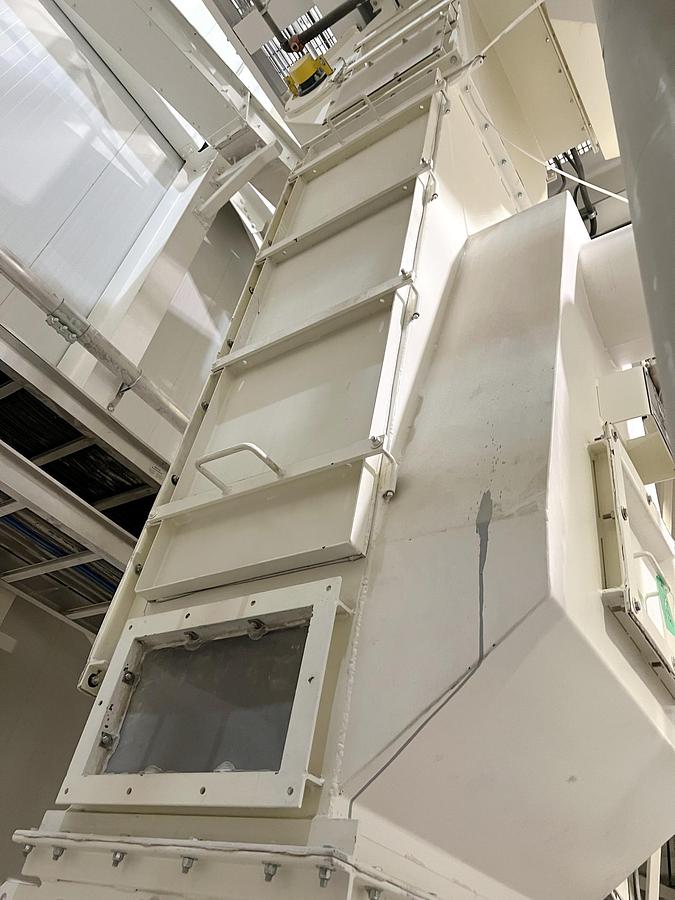

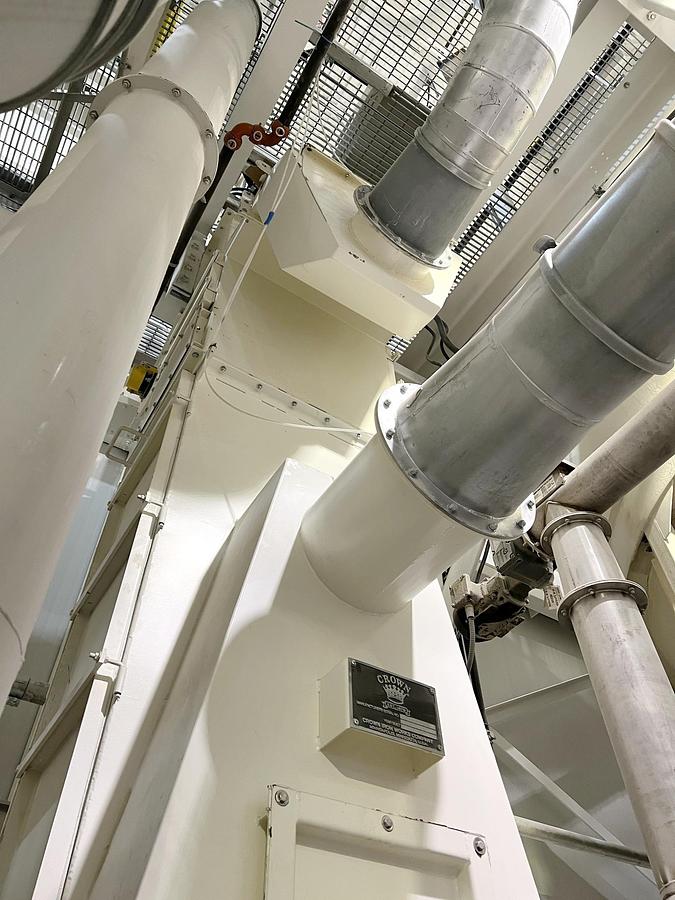

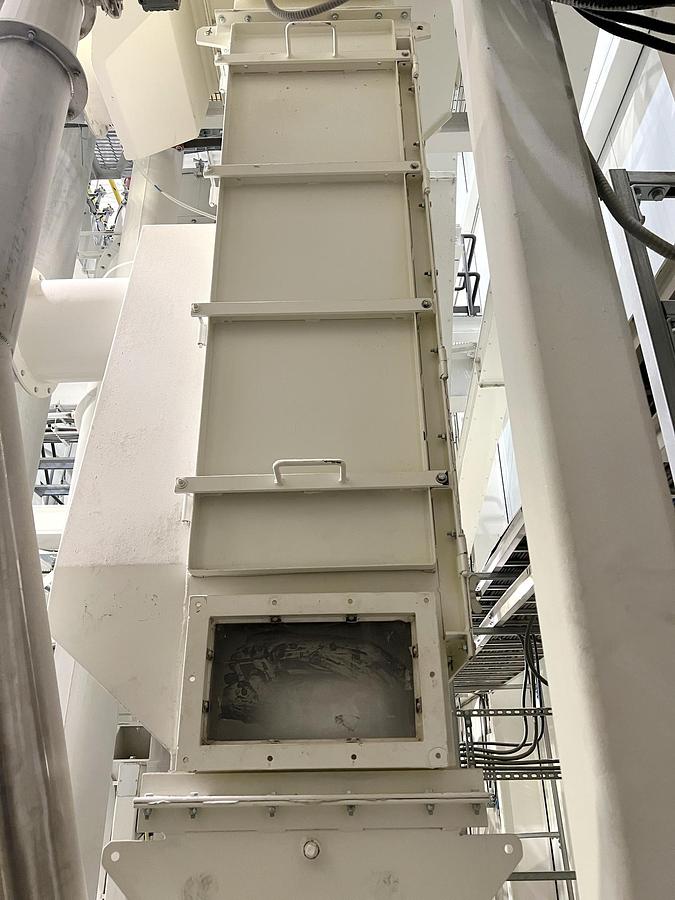

101. ONE CROWN DEHULLING ASPIRATOR
Duty: To aspirate the cracked yellow peas and remove the
hulls that have separated from the peas.
Design: Counter current air flow with a special internal
construction to facilitate hull removal.
Construction: Heavy, robust construction with 1/4" thick carbon steel
side walls.
Including: Integral rotary feeder for control of air flow
Drive: Direct drive.
Motor: 2 HP
Supply: Crown Model# 749-000
Note: This aspiration system is sized for 17,637 lb/h of
cracked yellow peas at the inlet to the aspirator. At
lower rates, some additional care may be necessary
to ensure proper distribution of the cracked peas
entering the feeder section.

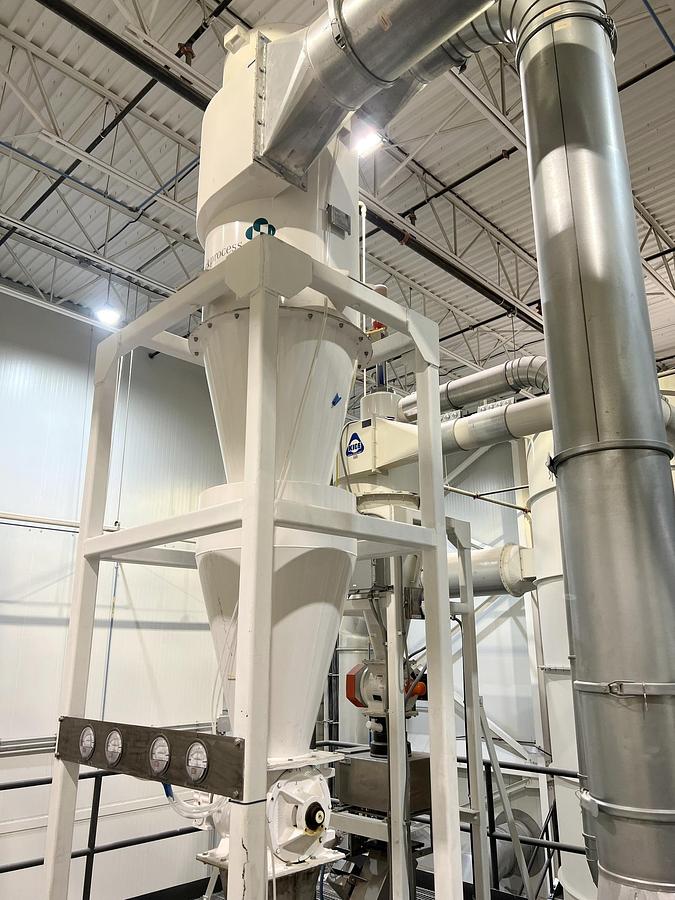

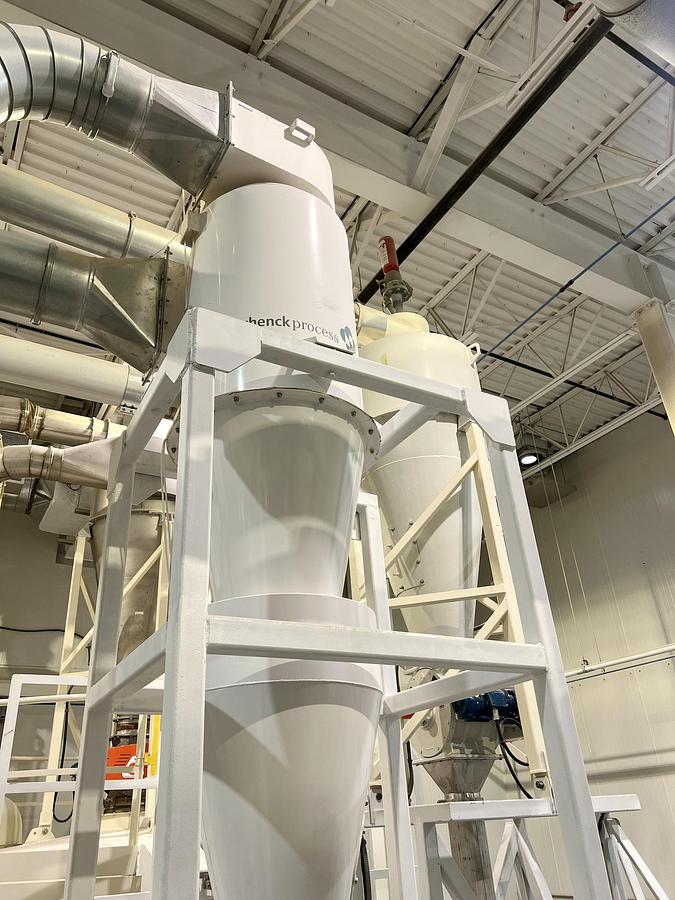

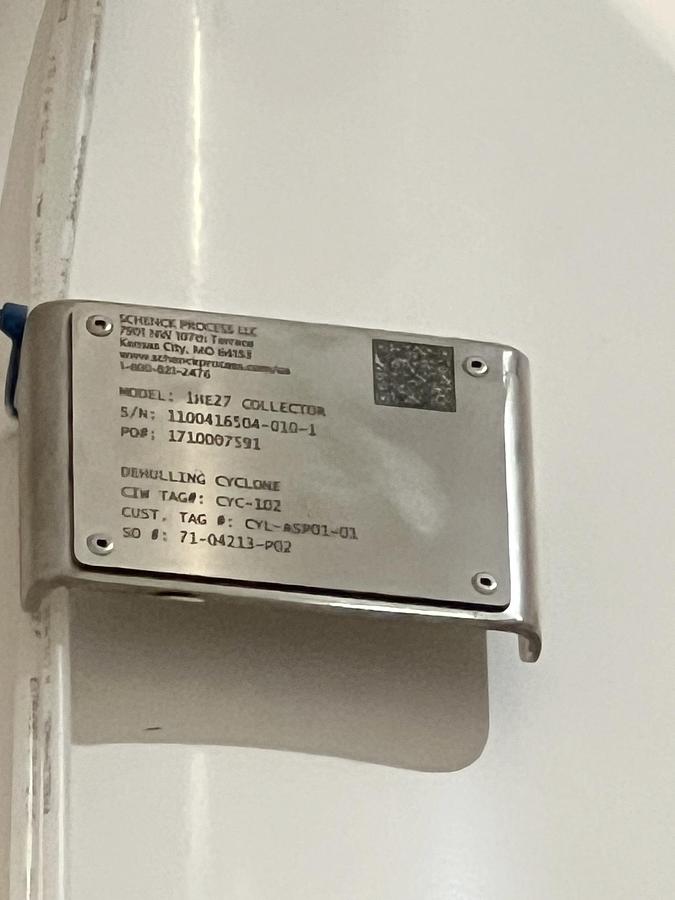

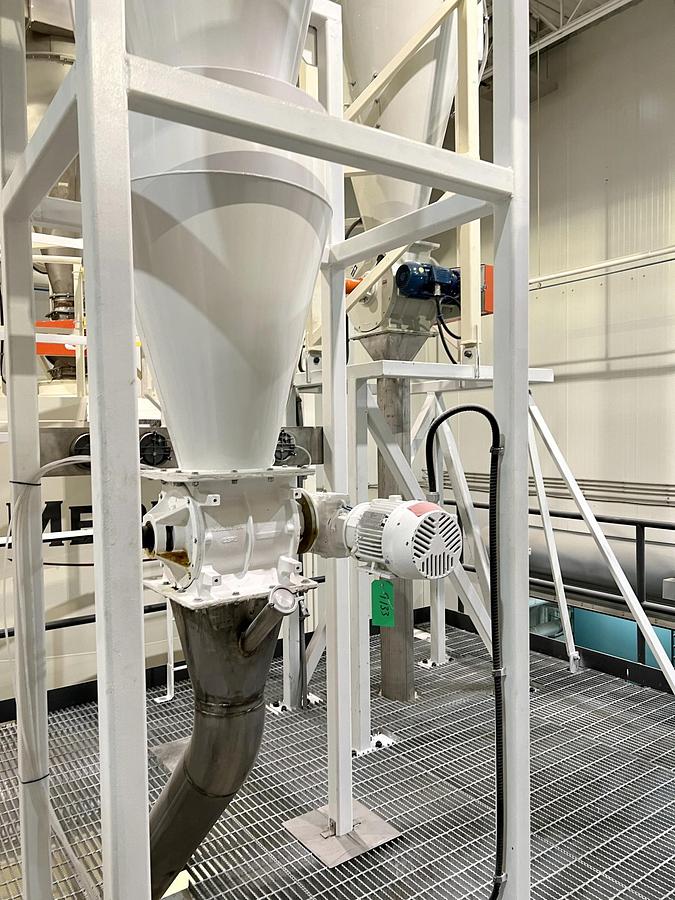

102. ONE CROWN DEHULLING CYCLONE
Duty: To collect the hulls that have been removed in the
dehulling aspirator.
Design: High efficiency, long cylinder type, with flanged inlet and
outlet, bolted cleanout in bottom 1/3 of cone, mounting
pads for setting on structural steel.
Construction: Carbon steel with AR liner in inlet scroll.
Capacity: 3,500 CFM
Size: 30" diameter
Supply: Schenck

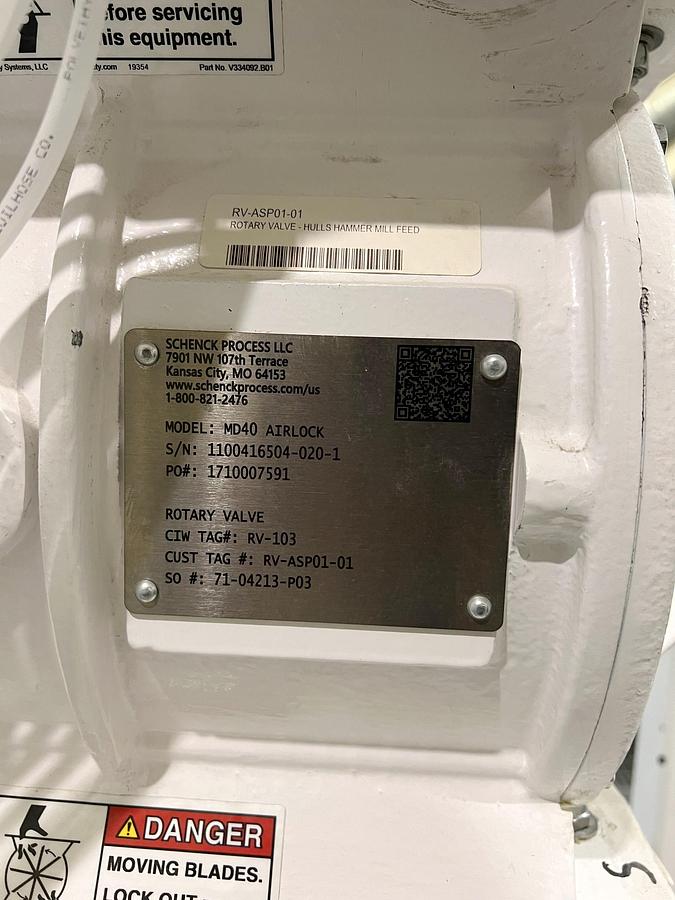

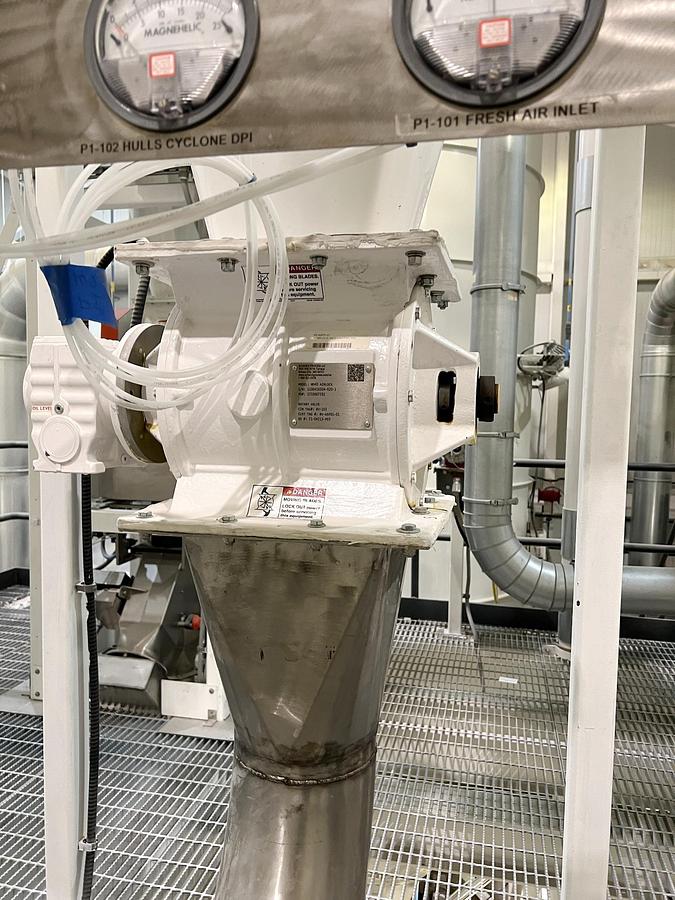

103. ONE CROWN DEHULLING CYCLONE ROTARY VALVE
Duty: To discharge the collected material from the dehulling
cyclone.
Construction: Cast Iron housing and 8-vane rotor, relieved tips,
outboard bearings.
Drive: Direct drive
Motor: 1 HP
MERIT FUNCTIONAL FOODS
Proposal No. Q71-05441-PREP
Date: February 17, 2020
Page: 2
SPECIFICATION OF EQUIPMENT (Continued)
ITEM QTY SUPPLIER DESCRIPTION

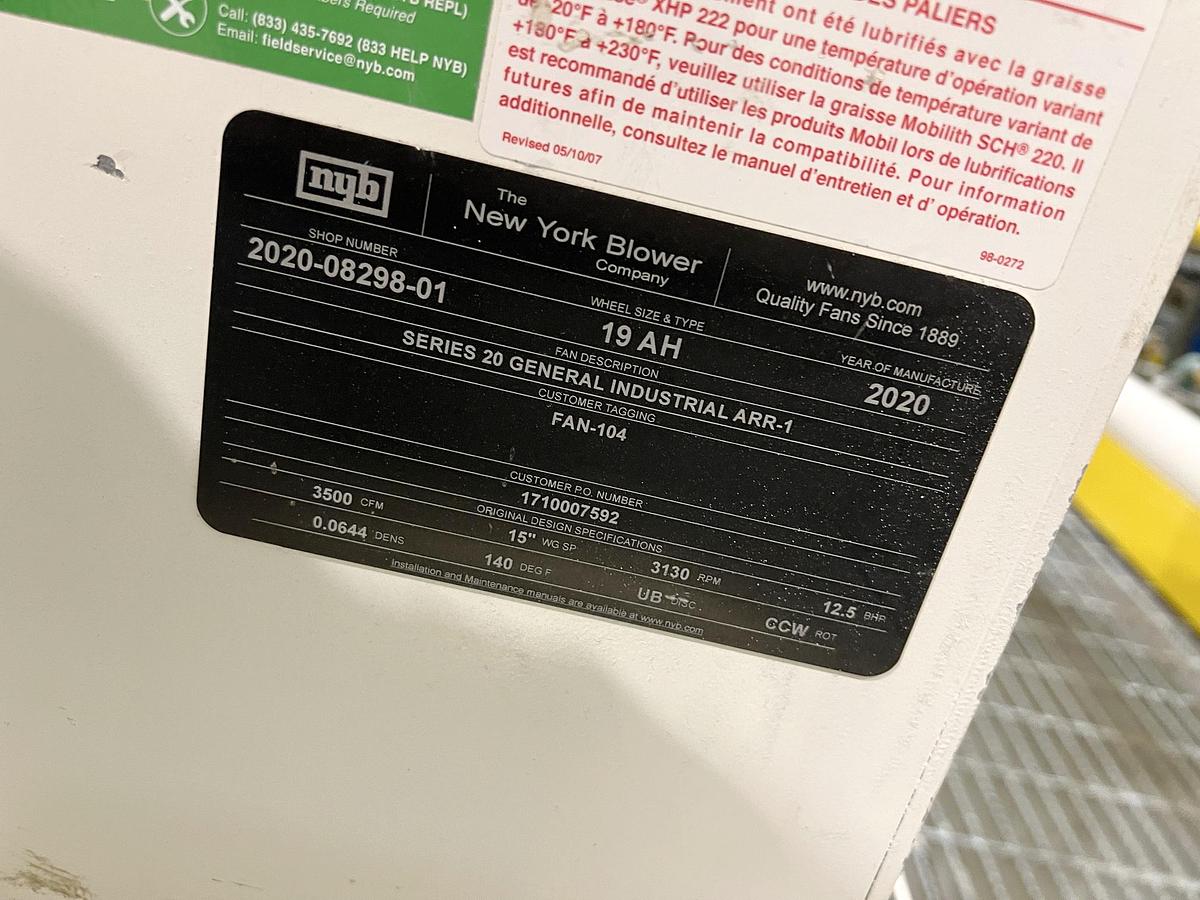

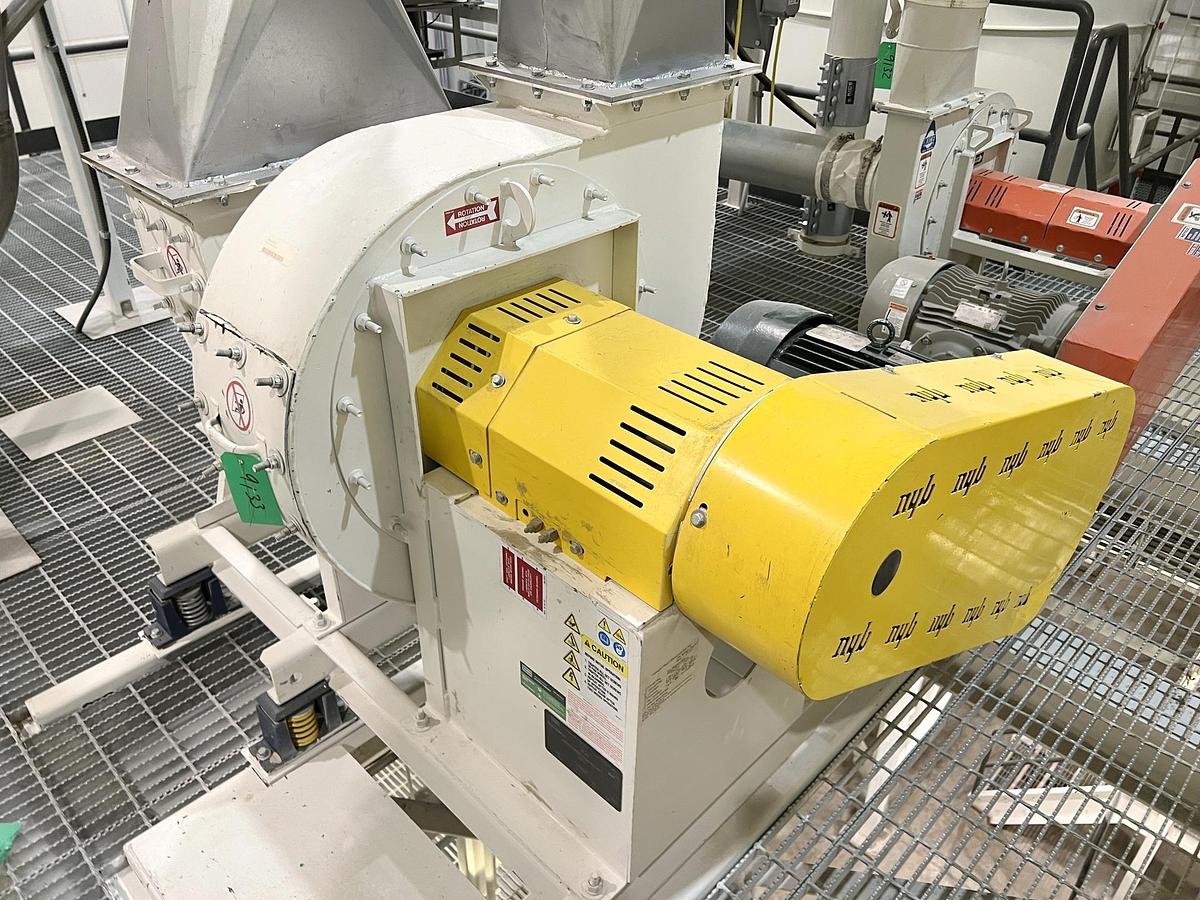

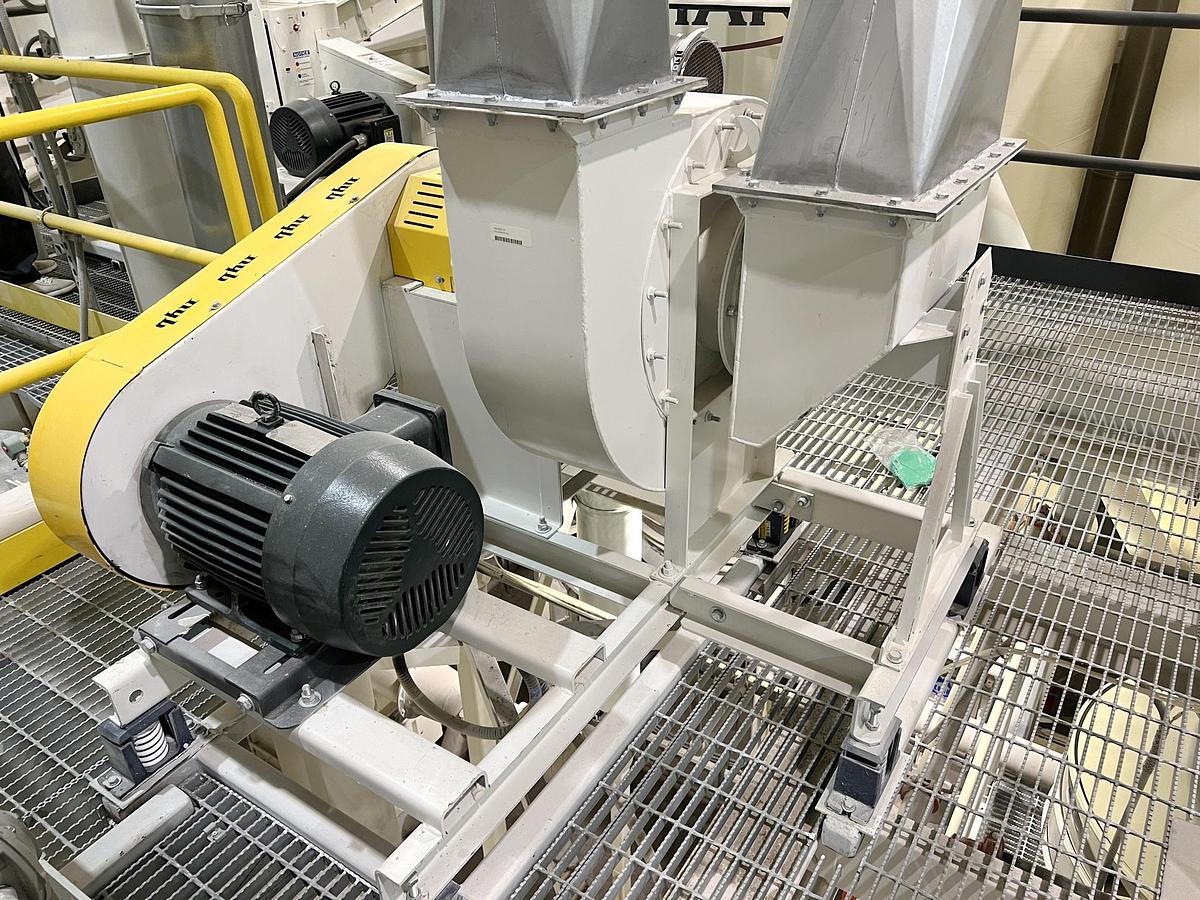

104. ONE CROWN DEHULLING ASPIRATION FAN
Duty: To provide aspiration air for the dehulling aspirator.
Design: High efficiency radial tip wheel.
Construction: Mild steel.
Accessories: Flush bolted cleanout, drain, ceramic felt shaft seals,
unitary base, flanged inlet and outlet, shaft and bearing
guard.
Drive: Sheave and V-belt drive
Rating: 3,500 CFM, 15” SP
Motor: 20 HP
105. THREE CROWN MANUAL DAMPERS
Duty: To control the air flow of Whole Bean system.
Size: (1) 12” for re-circulation air.
(2) 12” for fresh air and exhaust air.
Design: Manual butterfly dampers with locking quadrant.
Supply: U.S. Manufacturer
106. ONE CROWN LOT OF INSTRUMENTATION
Duty: Minimum instrumentation required for plant operation
Included:
• Four (4) Pressure Gauges
-location: Winnipeg, Manitoba
