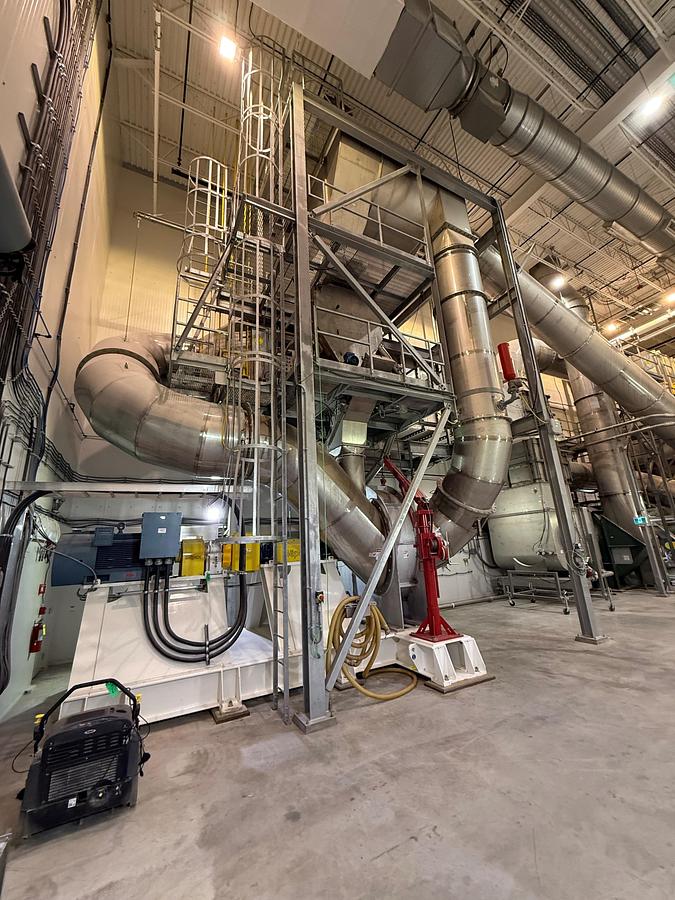

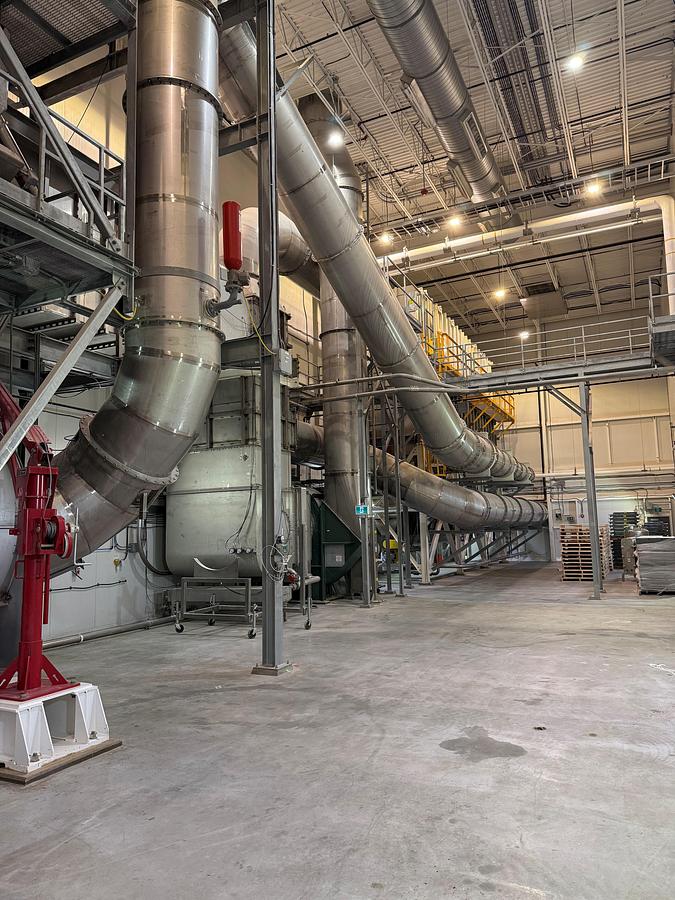

Used Bepex PCX Dispersion Dryer Package

Removal cost to be submitted to buyer upon request.

PCX System Virgin Feed Rate: 6,810 kg/hr at 65% Moisture

PCX System Dried Product Rate: 2,650 kg/hr at 10% Moisture

Used on pea starch and/or canola meal.

System Operation

The wet cake feeder will continuously meter wet cake material into the PCX dryer. Upon entry into the dryer, a specially designed dispersion plate ensures intimate contact with the hot air stream being supplied from the gas burner. The dispersed and dried product is then pneumatically conveyed to the PCX Cyclone and Baghouse Filter receiver where the product is collected and discharged through rotary airlocks. The exhaust fan draws the system air and dried product through the PCX and into a cyclone collector followed by baghouse.

Package including but not limited to:

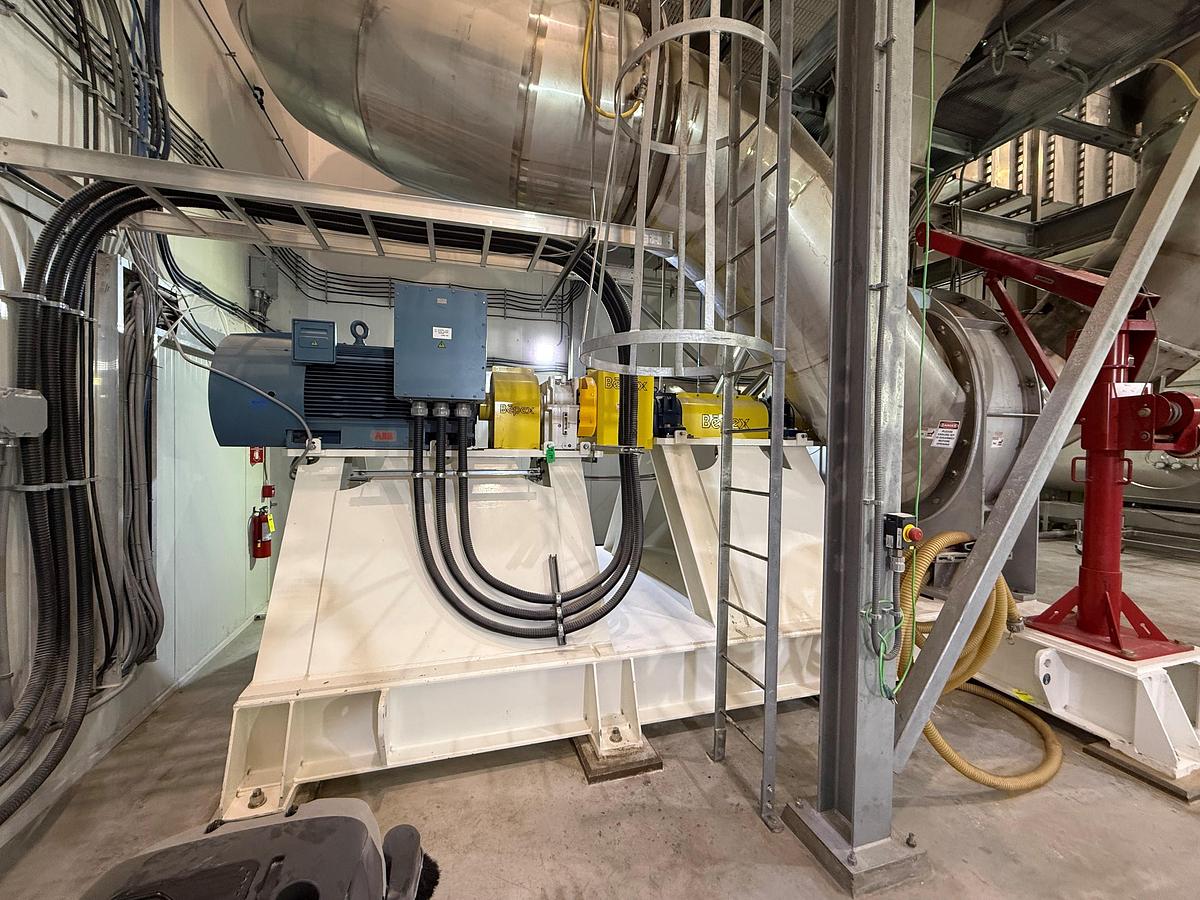

One Bepex International PCX Dispersion Dryer

A. PCX dryer constructed of 316 stainless steel in product contact areas. Unit is mounted on a heavy duty painted carbon steel base.

B. Recycle hopper

C. Pocket feeder assembly

D. Dispersion plates

E. Static classifier assembly bolted to the PCX body with davit arm assembly to assist in removal.

F. Interior finish shall be Bepex #200 finish. Exterior finish shall be Bepex #100 with any carbon steel parts painted.

G. Motor Design: 500 Hp

One Natural Gas Direct Burner

A. Combustion duct constructed of 304 stainless-steel shell with suitable structural stiffeners. The shell includes both burner and pilot peep sights, reinforced valve train mounts. Flanged inlet and outlet duct connections.

B. Pre-assembled gas valve train with inlet for Natural Gas along with main gas safety shutoff valves, gas pressure regulators, pilot solenoids, high and low gas pressure switch, modulating gas valve.

C. Remote control panel with start/stop push buttons, “E” stop button, indicator lights, Honeywell FM approved high limit, Honeywell PID digital temperature controller, burner flame relay, annunciator display, and alarm. The control panel is shipped loose. Air heater is pre-wired.

One Wet Cake Feeder

A. Twin screw wet cake feeder with double paddle agitators.

B. Material contact parts to be constructed from 316 Stainless Steel

One Cyclone

A. Cyclone material contact to be constructed from 304 stainless steel

B. Interior finish shall be Bepex #200 finish. Exterior finish shall be Bepex #100 with any carbon steel parts painted.

C. Bottom discharge through airlock.

D. Estimated efficiency is 99% of +20 micron material.

E. Chemical Suppression included

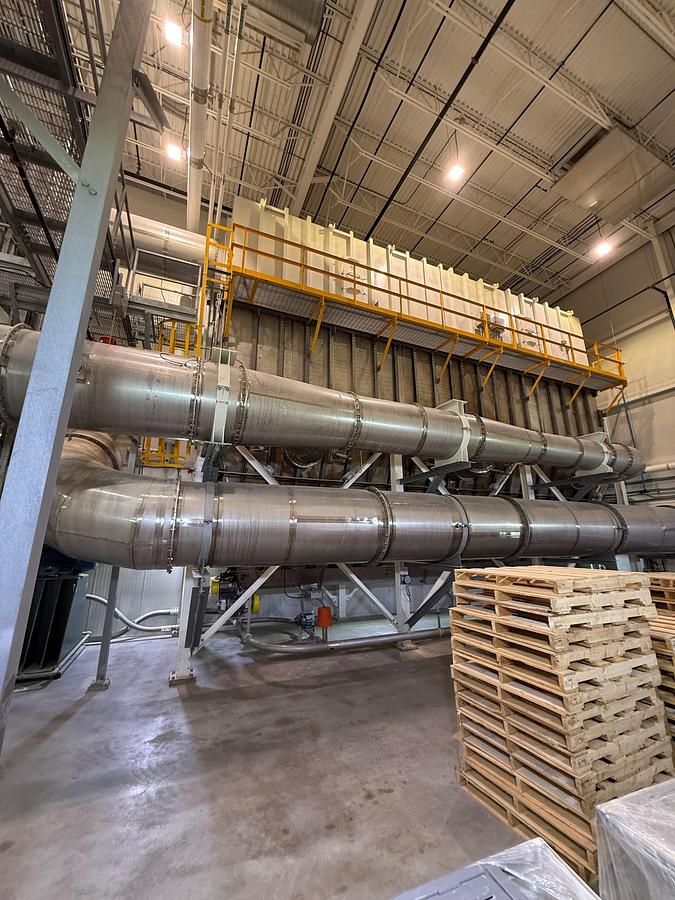

One Baghouse Filter Receiver

A. Baghouse and hopper material contact parts are constructed from 304 stainless steel.

B. Interior finish shall be Bepex #200 finish. Exterior finish shall be Bepex #100 with any carbon steel parts painted.

C. Ladder, Handrails, Air Header, Legs and Support.

D. Polyester Filter Bags and stainless-steel cages.

E. Bottom Screw conveyor to move material into airlock.

F. Bag Length 100”

G. Venting Included

H. Rotary Airlock Included

Two Rotary Airlock Valves

A. Rotary valve with stainless steel material contact parts.

B. Independently driven motor.

One Exhaust Fan

A. Mild Steel Construction – Coated with Epoxy Paint

B. Inlet box and damper with actuator and positioner.

C. Inlet and outlet flange connections.

D. Motor Design: (suitable for use with VFD)

600 Hp, Belt, shaft and bearing guards

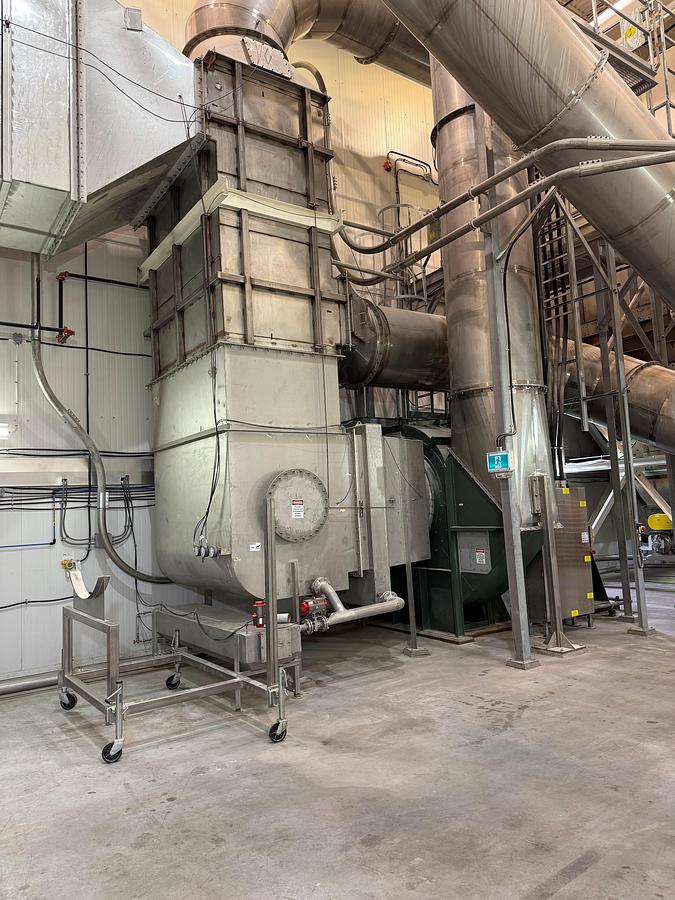

One Economizer

A. 304SS plate heat exchanger

B. UI Counterflow configuration

C. Suitable for summer and winter conditions

One Inlet Air Filter

A. 304SS construction, 3-sided filter box.

B. Qty 12 TP 6000-MERV 18 Filters with side loading.

1000 Lot System Engineering

A. Project management.

B. Process Flow Diagram (PFD) with heat/material balance.

C. Simplified Piping and Instrumentation Diagram (P&ID). Includes recommended instrumentation, but does not include piping dimensions. Piping is in customer’s scope of supply.

D. Instrumentation List.

E. Written control philosophy overview.

F. One (1) hardcopy Installation and Operation Manuals (IOM) and one (1) electronic IOM.

Lot Instrumentation and Controls

A. Control System

1. NEMA 4 SST enclosure

2. Allen Bradley CompactLogix PLC controls & 12” touch screen

3. Programming for control of Bepex-supplied equipment

B. Instrumentation

1. Temperature transmitter (4)

2. Pressure transmitter (2)

3. Differential transmitters (2)

4. Level probe, single point (2)

5. Level transmitter (2) – non-contacting for wet cake feeder

6. Air flow sensor (1)

C. Motor Control Center

1. VFD’s

2. Motor starters for airlock

3. NEMA12 steel enclosure

4. Filtered fan cooling
